Compare EK6 indoor earthing switch and SW71 solid-insulated RMU core configurations for medium-voltage switchgear. Review ratings, drawings, mechanical interfaces and project RFQ inputs.
Compare two switchgear component paths with their visible ratings and drawings. Open each configuration to review electrical duty, unit type and the interface details needed for quotation.

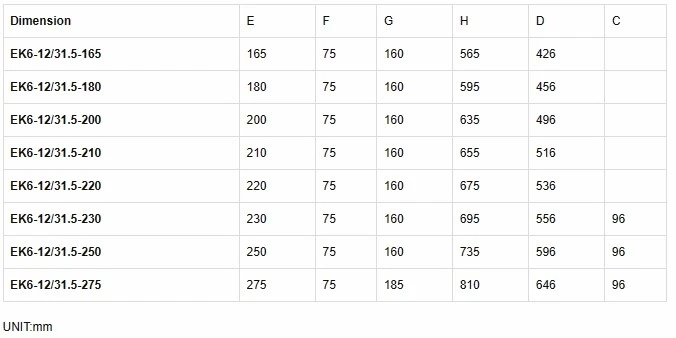

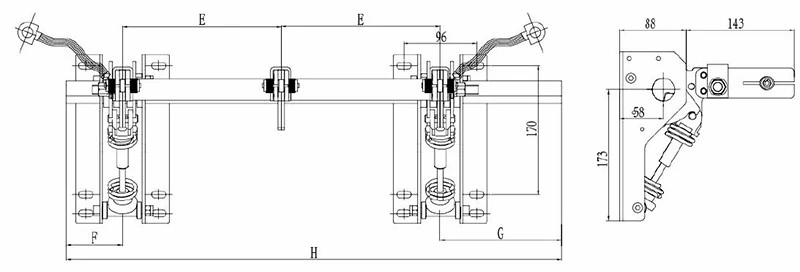

Review seven published ratings with the arrangement, mounting and dimension drawings for an indoor earthing-switch application.
Compare circuit-breaker, load-switch and switch-fuse unit data with the SW71 equipment outline and project interface inputs.
Send the component function, switchgear application, interface drawing or photos, electrical duty, quantity and destination for a focused RFQ.

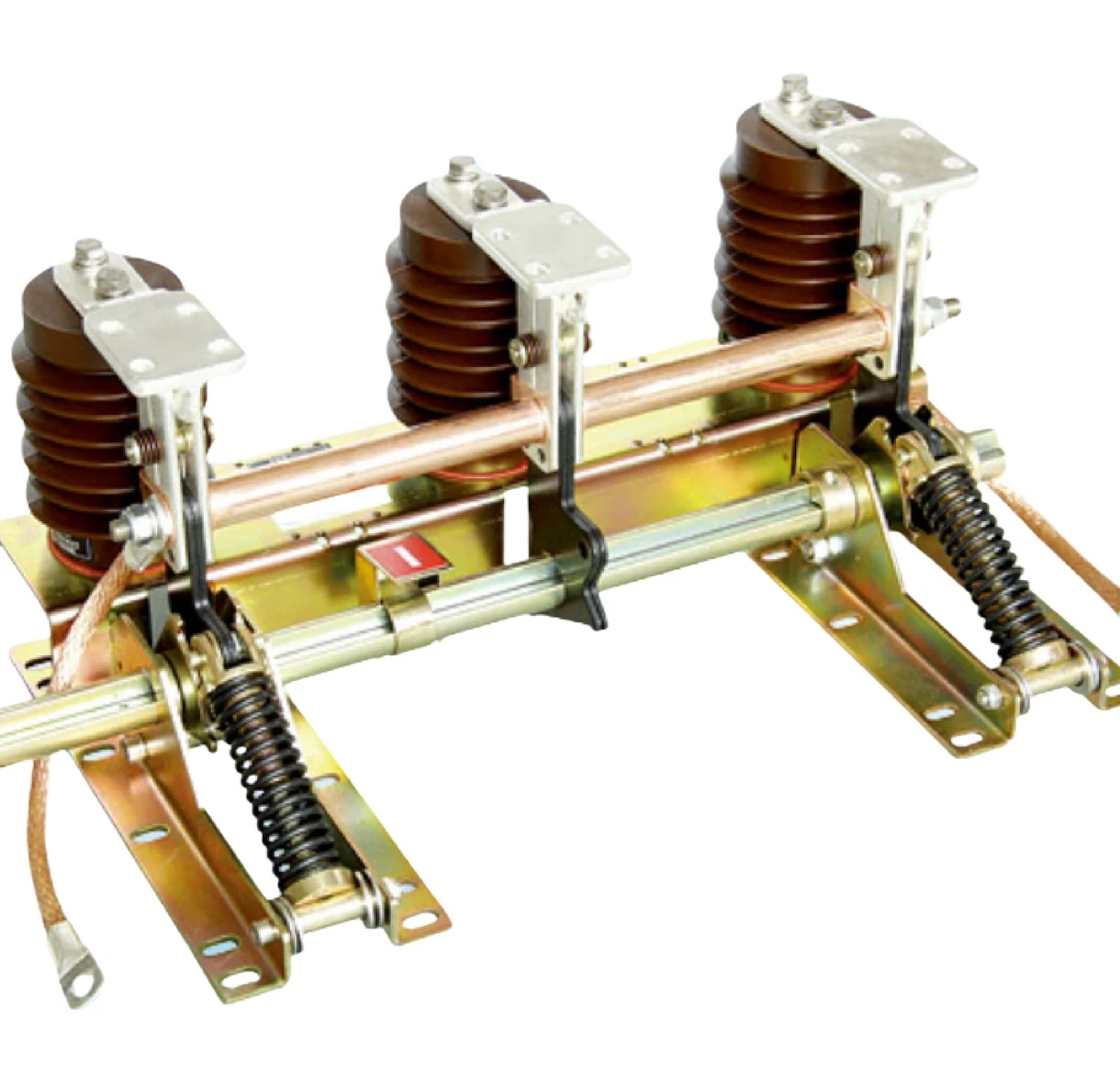

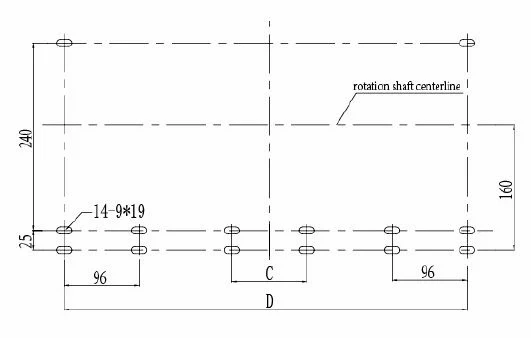

Use the EK6(KN15A)-12/31.5 ratings and three drawing views to compare the electrical duty, mounting arrangement and operating interface for an indoor earthing-switch application.
| Rated voltage | 12 kV |
|---|---|
| Short-time withstand current | 31.5 kA |
| Short-circuit duration | 4 s |
| Short-circuit closing / peak withstand | 80 kA / 80 kA |
| Power-frequency withstand | 42 kV (1 min) |
| Lightning impulse withstand | 75 kV |
| Mechanical life | 3000 operations |
RFQ inputs: panel type, system voltage and short-circuit duty, phase spacing, mounting face, terminal direction, operating position, handle or mechanism interface, interlock, drawing revision and required documents.

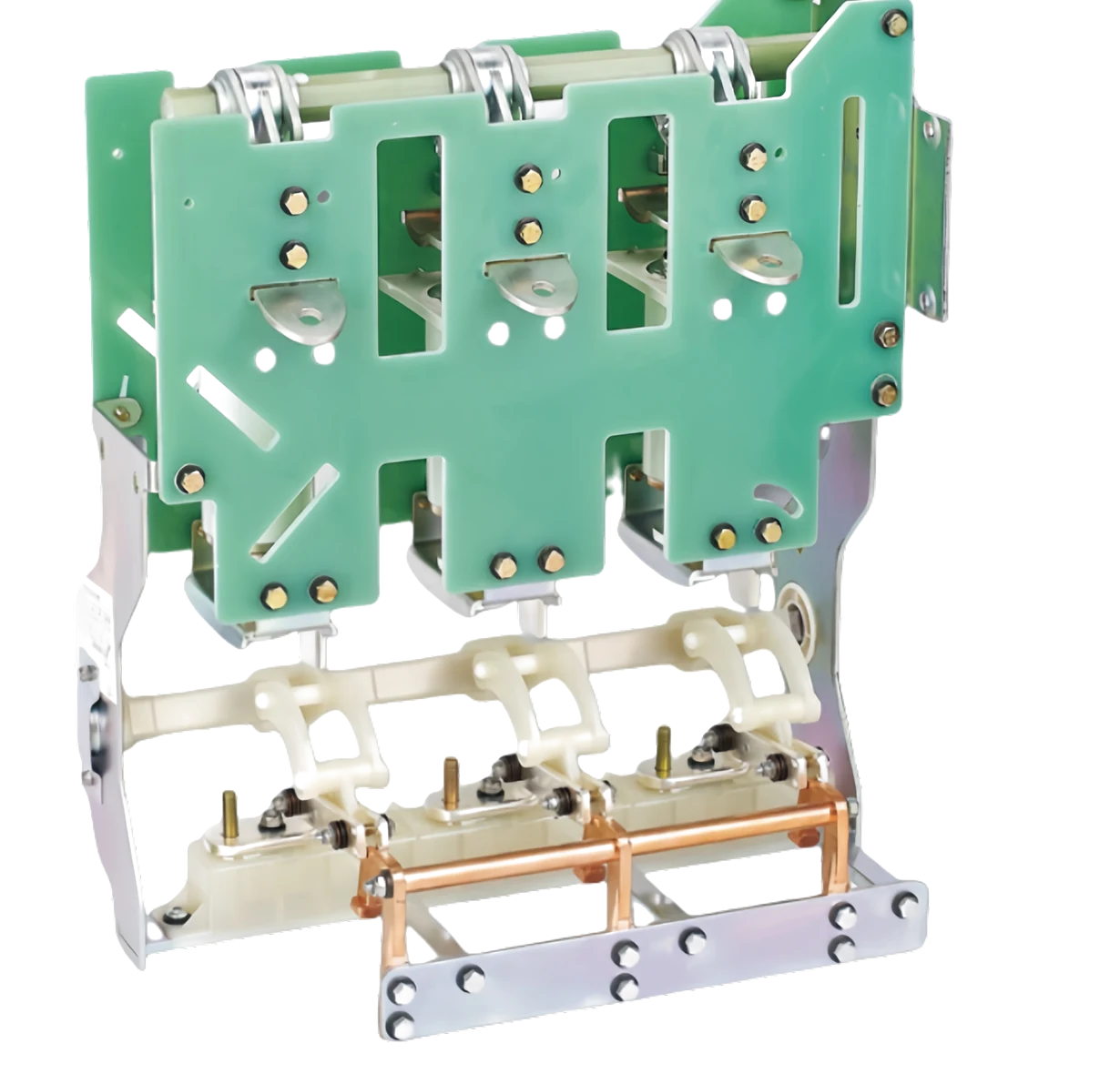

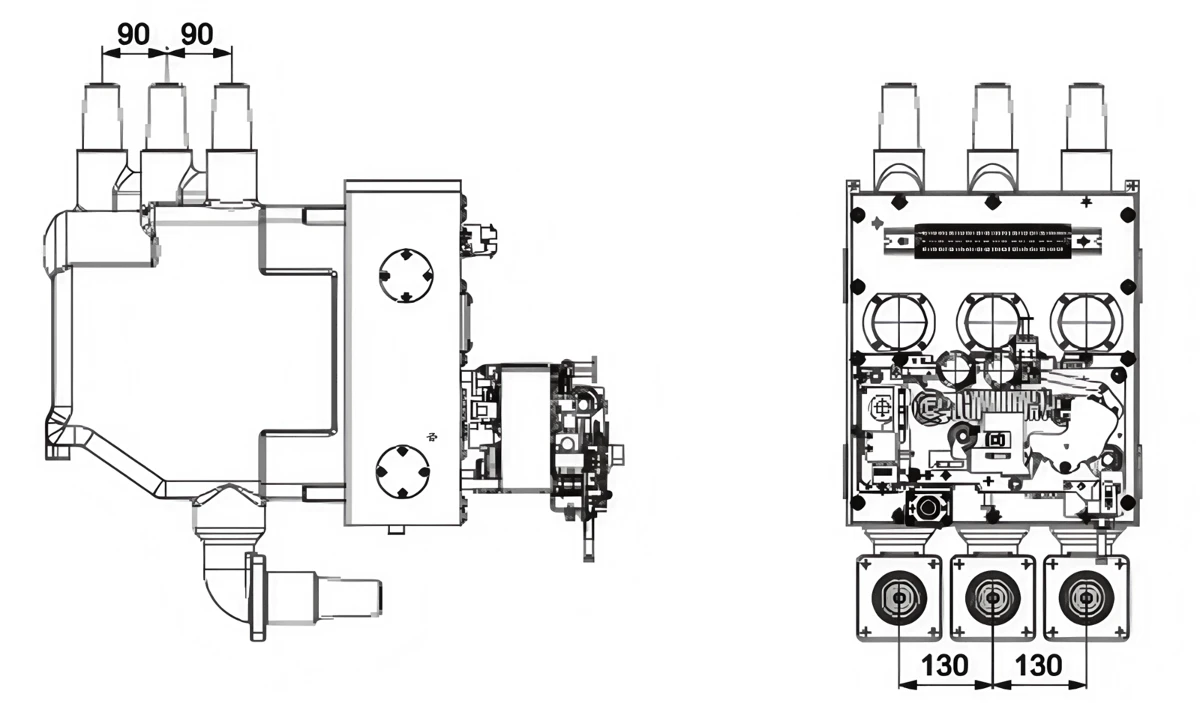

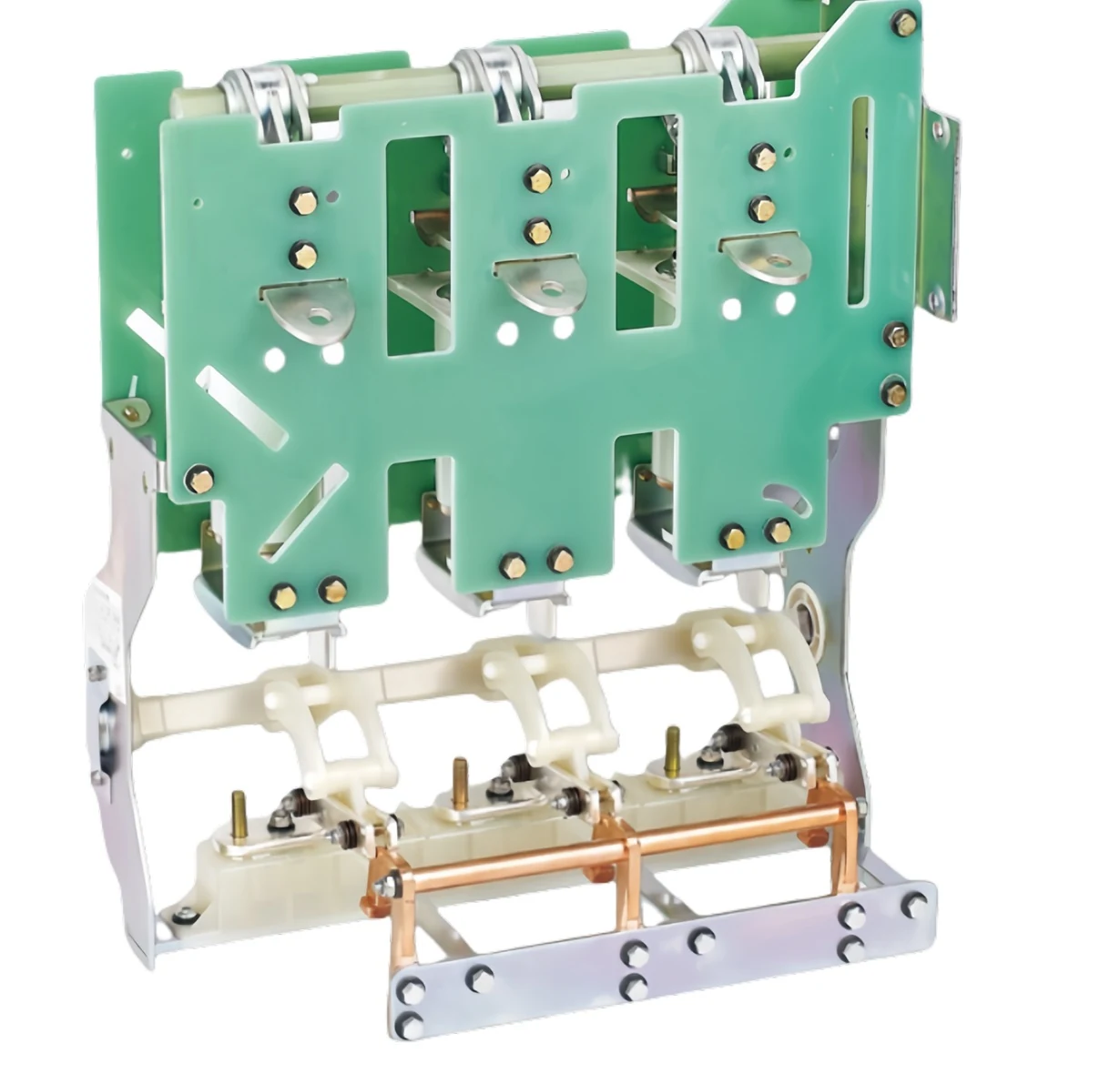

Compare the SW71 circuit-breaker, load-switch and switch-fuse unit paths with the equipment outline. Include the selected unit type, electrical duties, primary interface and enclosure arrangement in the RFQ.
On narrow screens, scroll horizontally to compare the three unit types.
| Item | CB unit | Load switch unit | Switch-fuse unit |
|---|---|---|---|
| Rated voltage | 12 kV | 12 kV | 12 kV |
| Rated current | 630 / 1250 A | 630 / 1250 A | Fuse-dependent |
| Power-frequency withstand | 42 kV | 42 kV | 42 kV |
| Lightning impulse withstand | 75 kV | 75 kV | 75 kV |
| Short-time withstand | 20 (25) / 45 kA | 20 (25) / 45 kA | — |
| Peak withstand | 50 (63) kA | 50 (63) kA | — |
| Internal arc fault test | 20 (25) / 0.5 s | 20 (25) / 0.5 s | — |
| Partial discharge | ≤10 pC | ≤10 pC | — |
| Mechanical endurance, CB / load switch | 10000 | 10000 | 10000 |
| Disconnector / grounding switch | 3000 | 3000 | 3000 |
RFQ inputs: selected unit type, rated current, insulation and short-circuit duties, primary interface, phase layout, operating sequence, enclosure clearance, cable direction and required documents.
Coordinate the electrical duty, switching function, mechanical envelope, operating interface, interlocks, drawings, documents and delivery scope before quotation.
Specify the panel or RMU application, system voltage, frequency, rated current, short-circuit duty and selected switching unit.
Provide the mounting face, phase spacing, terminal direction, operating position, clearances, operating handle or mechanism and interlock.
Include the GA or SLD, interface drawing, nameplate or photos, applicable standard, inspection documents, quantity, destination, packing and schedule.
Engineering and procurement guidance for EK6 earthing switch and SW71 solid-insulated RMU core selection, interfaces and quotation inputs.
An earthing switch provides the grounding function within a switchgear arrangement. A solid-insulated RMU core integrates the primary switching and insulation path for a selected circuit-breaker, load-switch or switch-fuse unit. The required interfaces and operating duties are therefore different.
Provide the panel type, system voltage and short-circuit duty, mounting face, phase spacing, terminal direction, operating position, handle or mechanism interface, interlock requirement, drawing or photos, quantity and destination.
Identify the circuit-breaker, load-switch or switch-fuse unit, rated current, insulation and short-circuit duties, primary interface, phase layout, operating sequence, enclosure clearance, cable direction and required documents.
Send the selected EK6 or SW71 path, switchgear application, electrical duties, mechanical and interlock interfaces, current drawing or nameplate photos, quantity, destination, packing, inspection-document requirements and delivery schedule.
Send the selected EK6 or SW71 configuration with the switchgear application, electrical duties, unit type, mechanical interface, drawings, documents and delivery requirements for quotation.
