Send the request type, manufacturer, equipment model/year, part reference, ratings, quantity, destination, required date, and any drawing or photo notes. The SUVELL team will review the request.
Compare plug-in epoxy bushings, bushing wells, tri-clamp wells and deadbreak apparatus bushings for distribution-transformer primary connections. Select by voltage and current rating, mating connector, tank-wall mounting, sealing and drawing interface.
Choose the connection family, then compare voltage and current class, mating system, conductor or terminal option, mounting method and engineering drawings for the transformer interface.

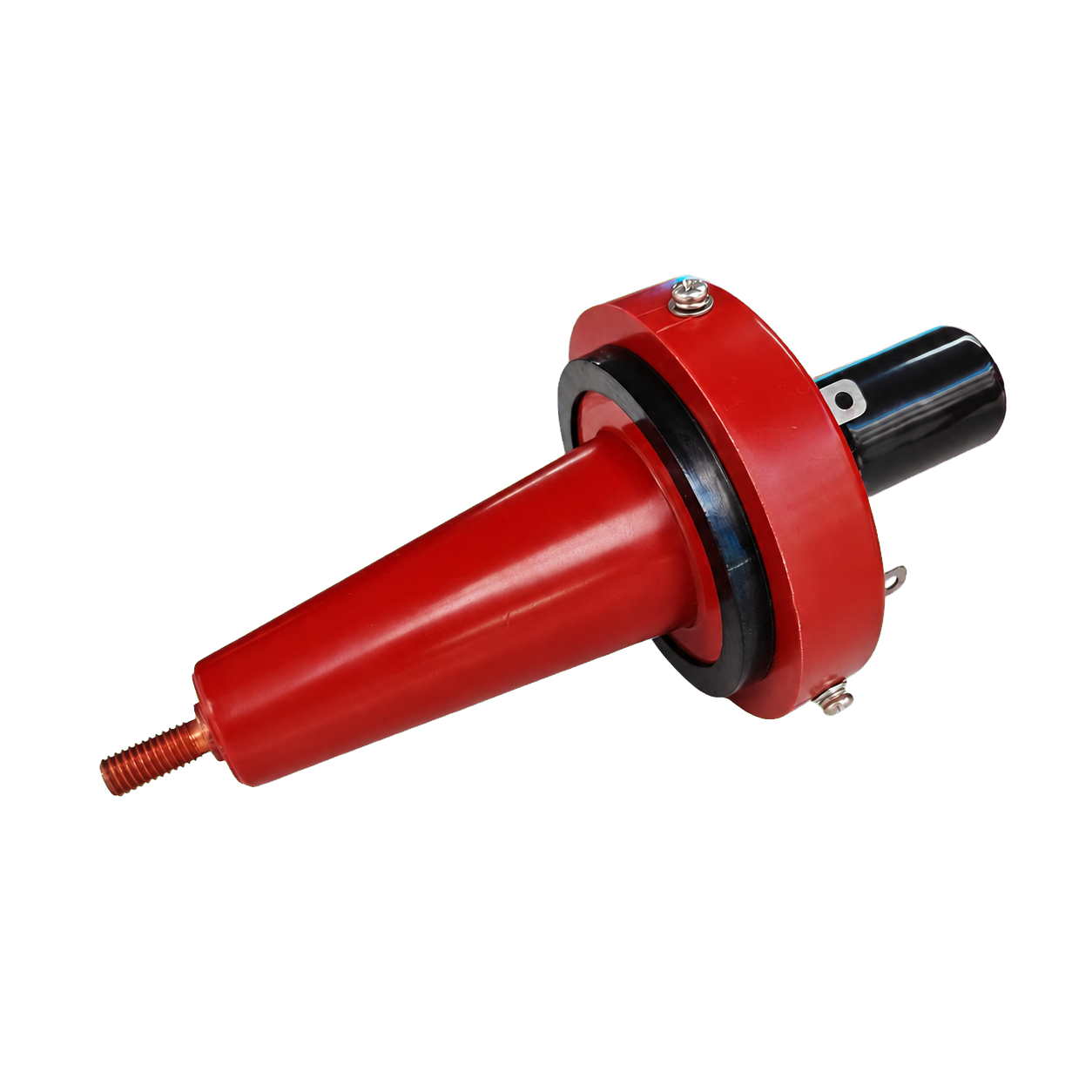

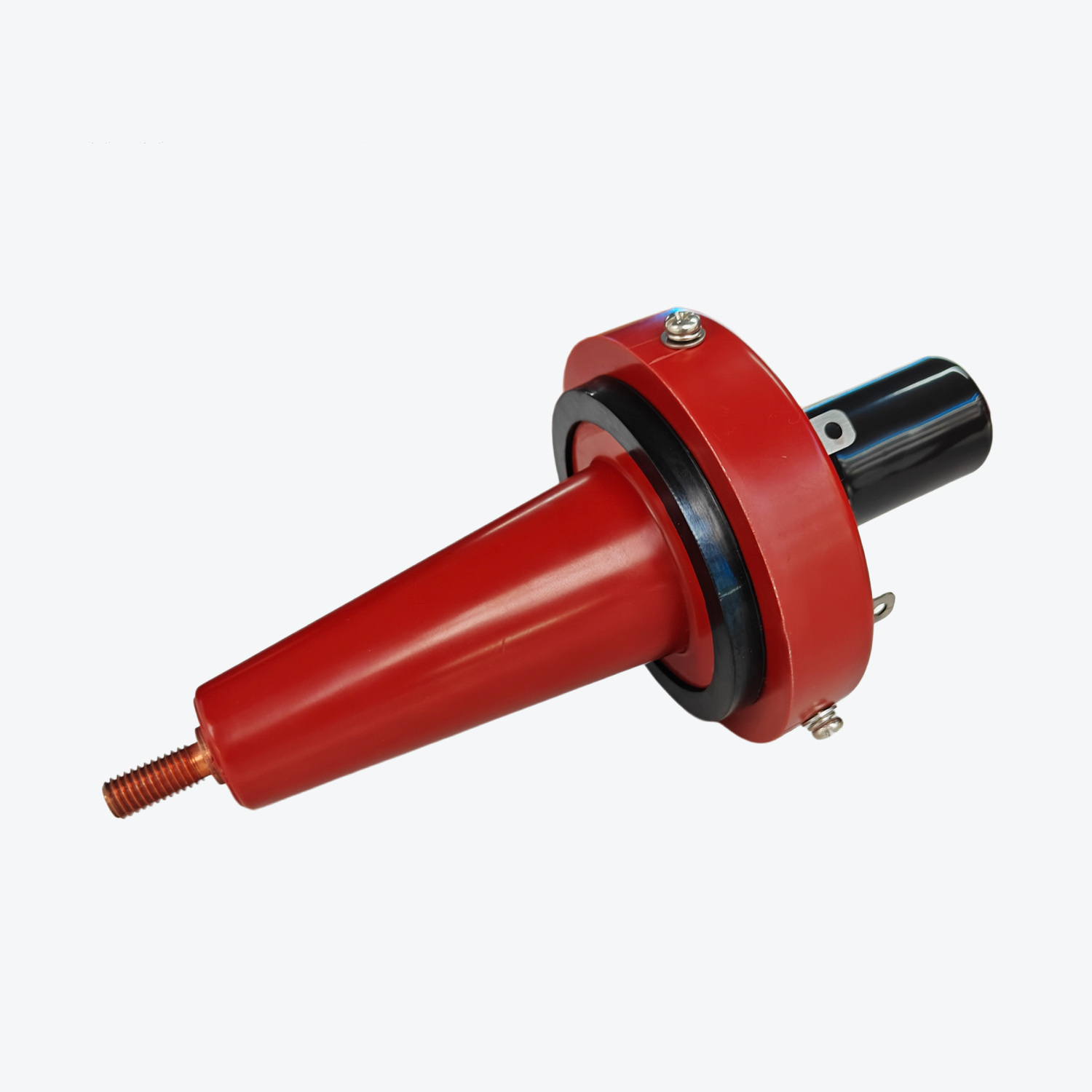

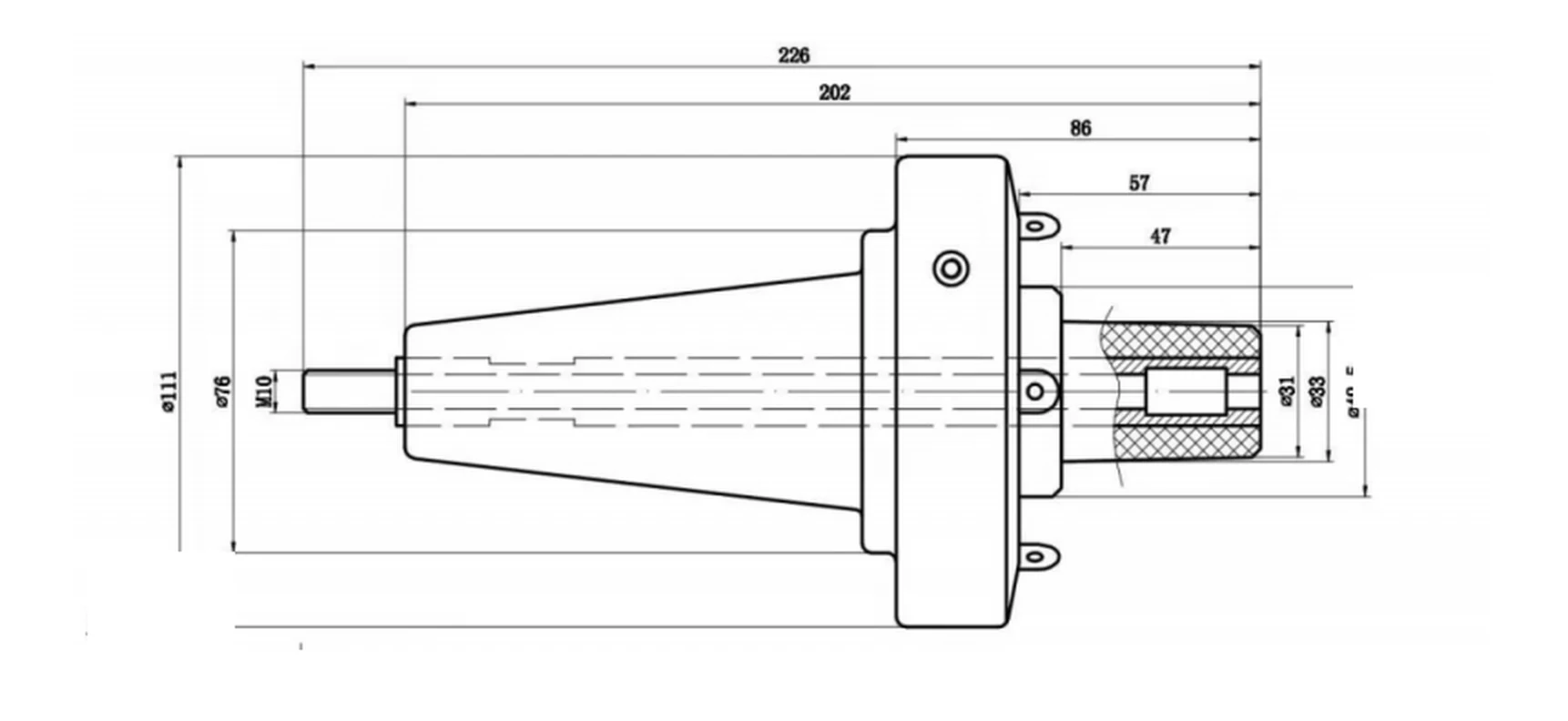

Plug-in epoxy bushing family for 250 A and 630 A distribution-transformer interfaces, selected by mating connection, tank-wall mounting, terminal arrangement and drawing dimensions.
Review ratings and drawings →

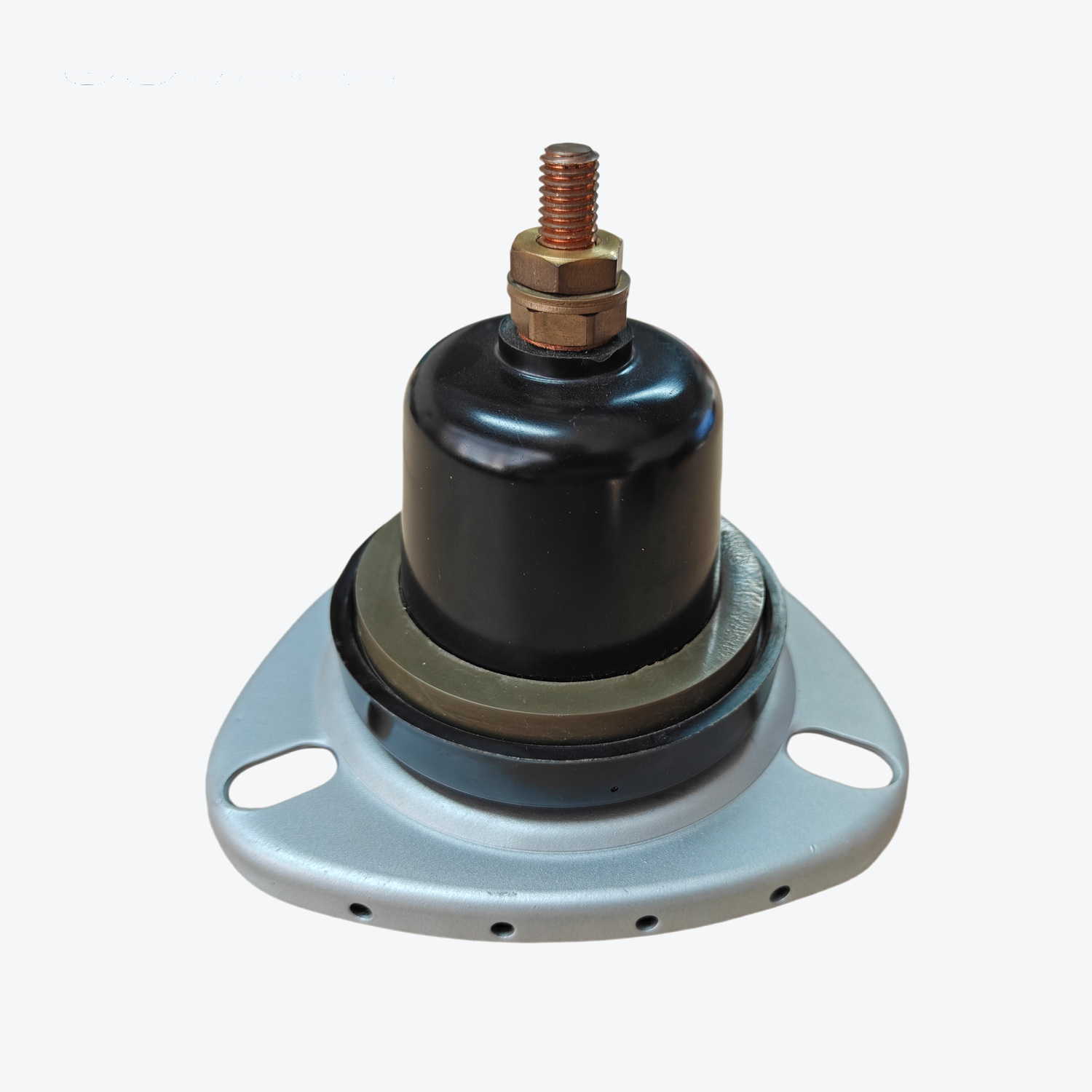

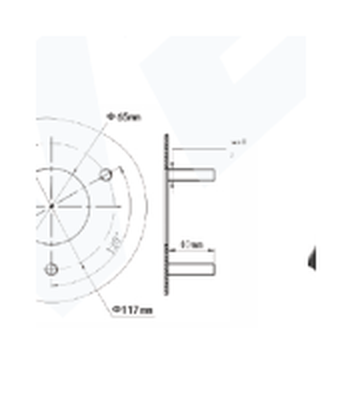

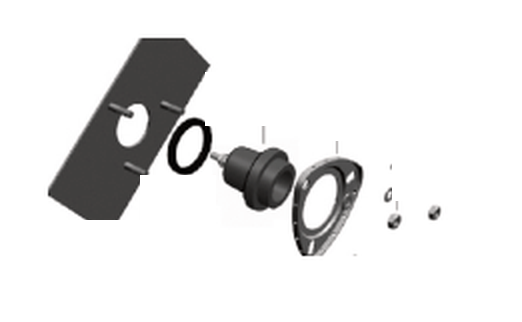

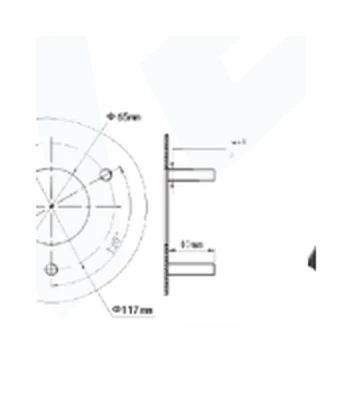

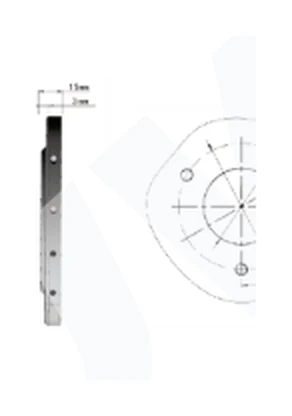

200 A transformer bushing well for 15 kV and 25 kV separable-connector systems, coordinated by insert compatibility, mounting interface and transformer connection arrangement.
Review ratings and drawings →

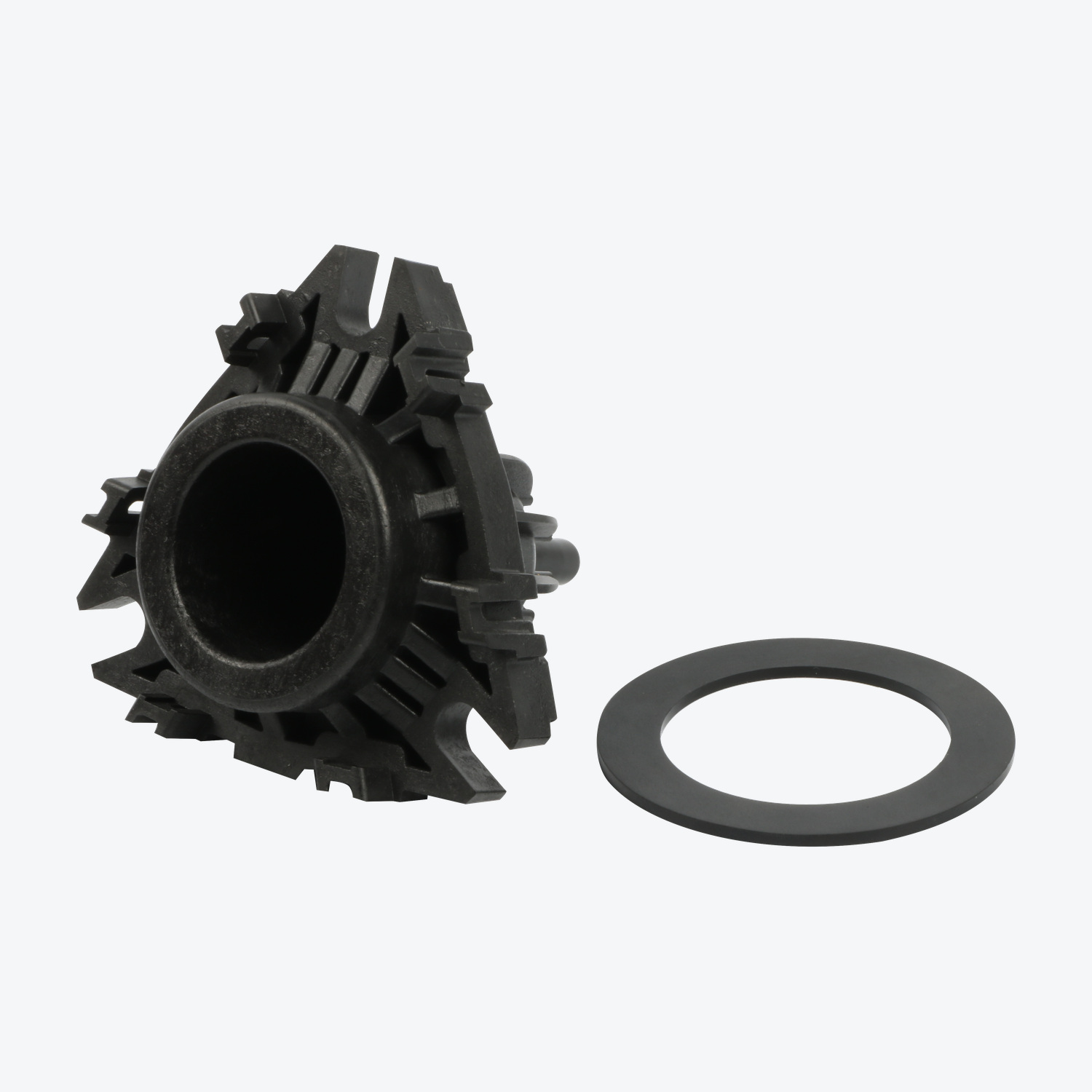

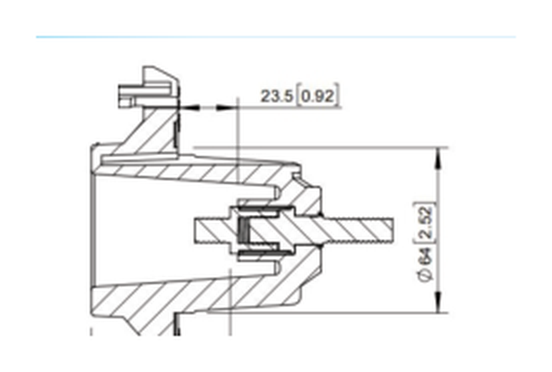

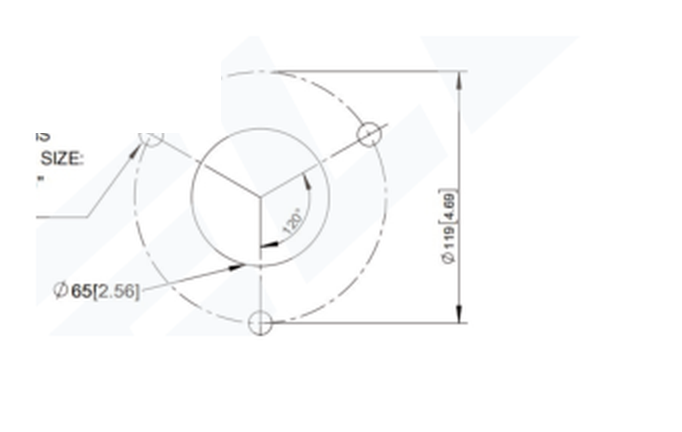

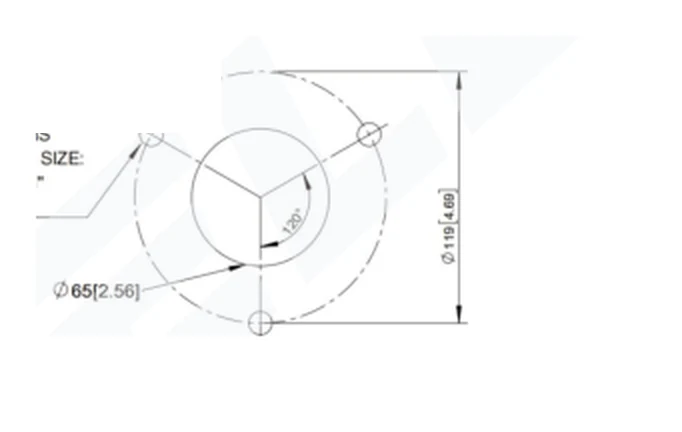

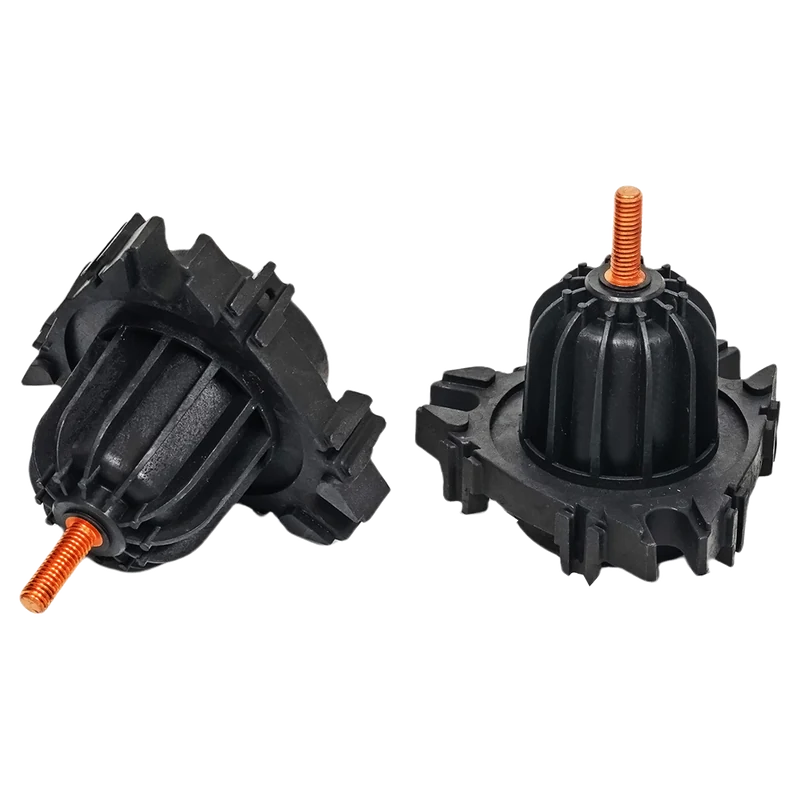

Tri-clamp plastic bushing well for 15/25/35 kV, 200 A transformer interfaces, selected by stud, clamp, tank-wall opening, insulation duty and mating connector.
Review ratings and drawings →

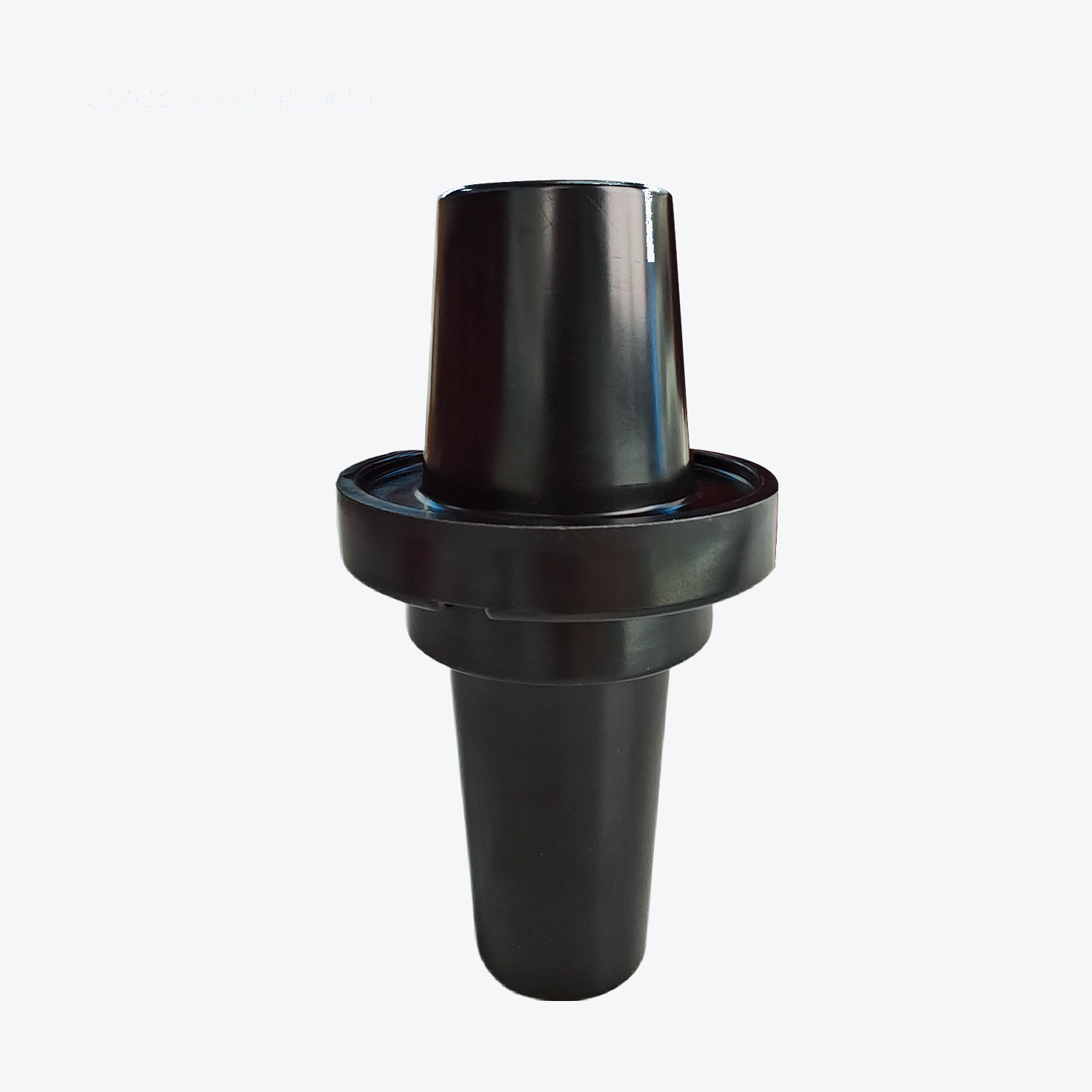

Deadbreak apparatus bushing family for 15/25/28 kV transformer interfaces, with 600 A aluminum and 900 A copper configurations for separable deadbreak connections.
Review ratings and drawings →

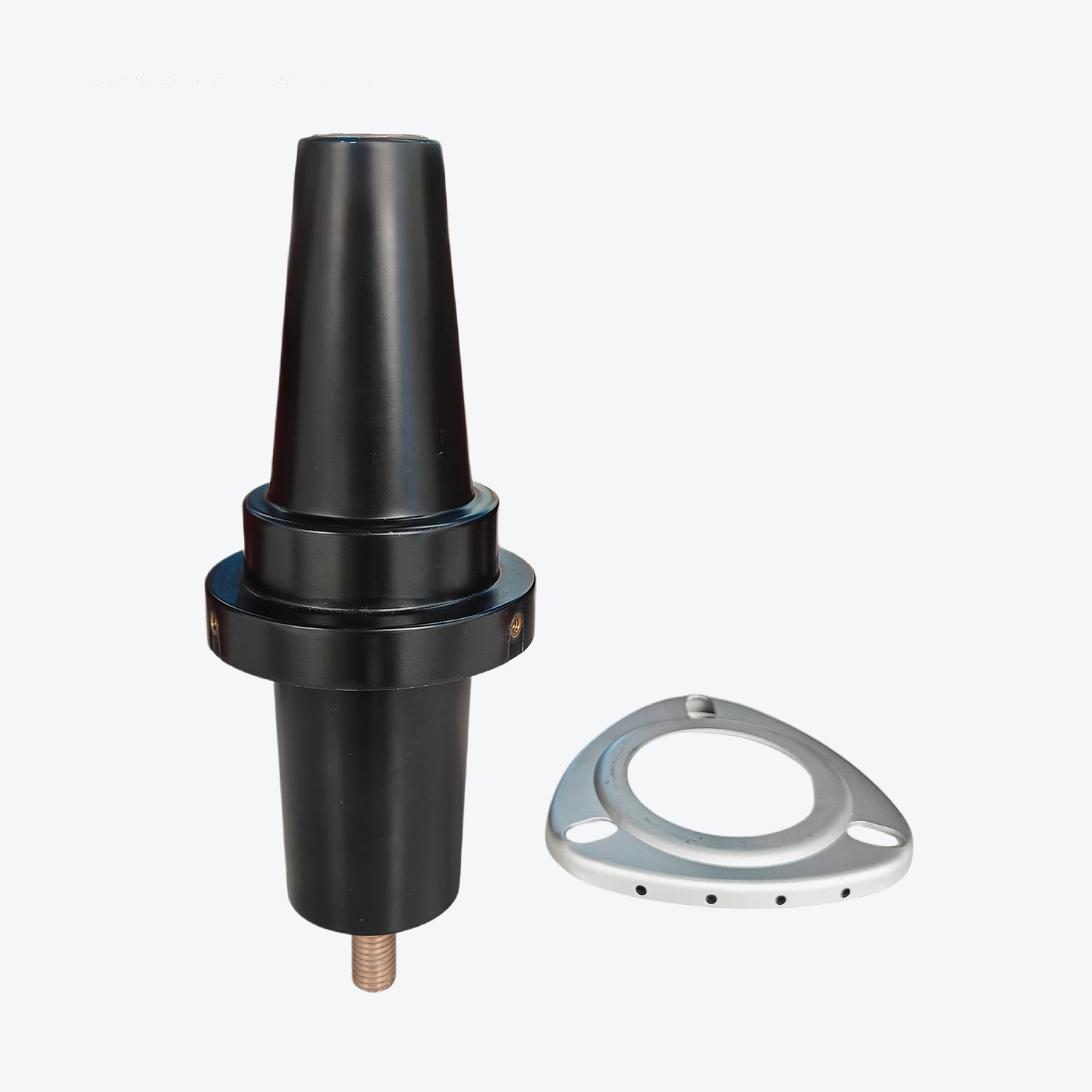

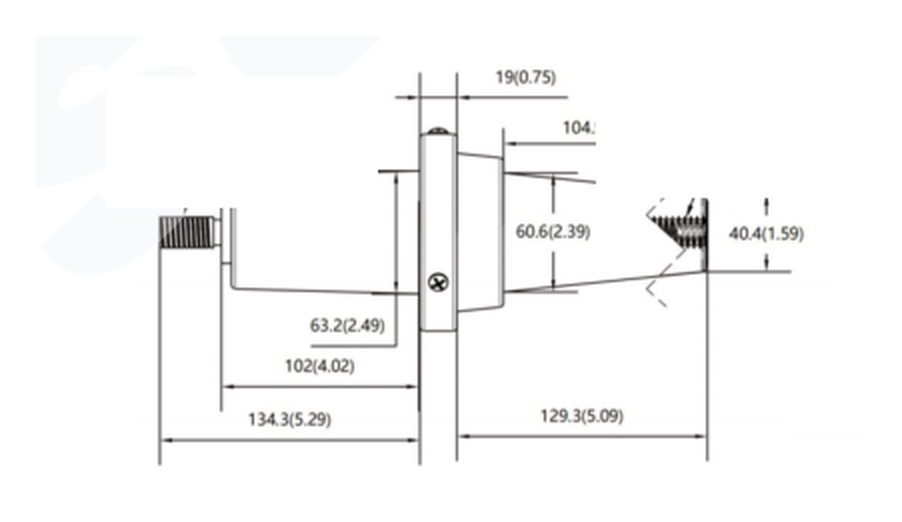

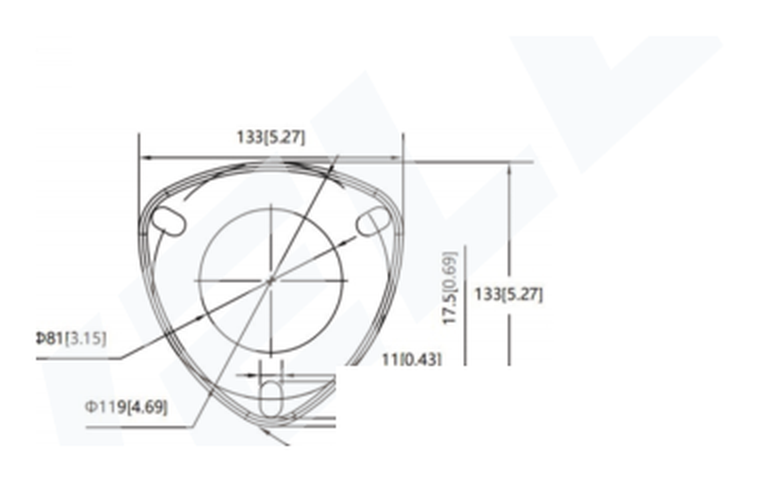

35 kV deadbreak apparatus bushing for high-current transformer interfaces, coordinated by the 600 A or 900 A connection, terminal, mounting face and equipment clearances.
Review ratings and drawings →
Review the visible ratings and drawings below. Coordinate the mating connection, terminal or conductor, mounting face, sealing, clearances and required documents with the transformer interface.

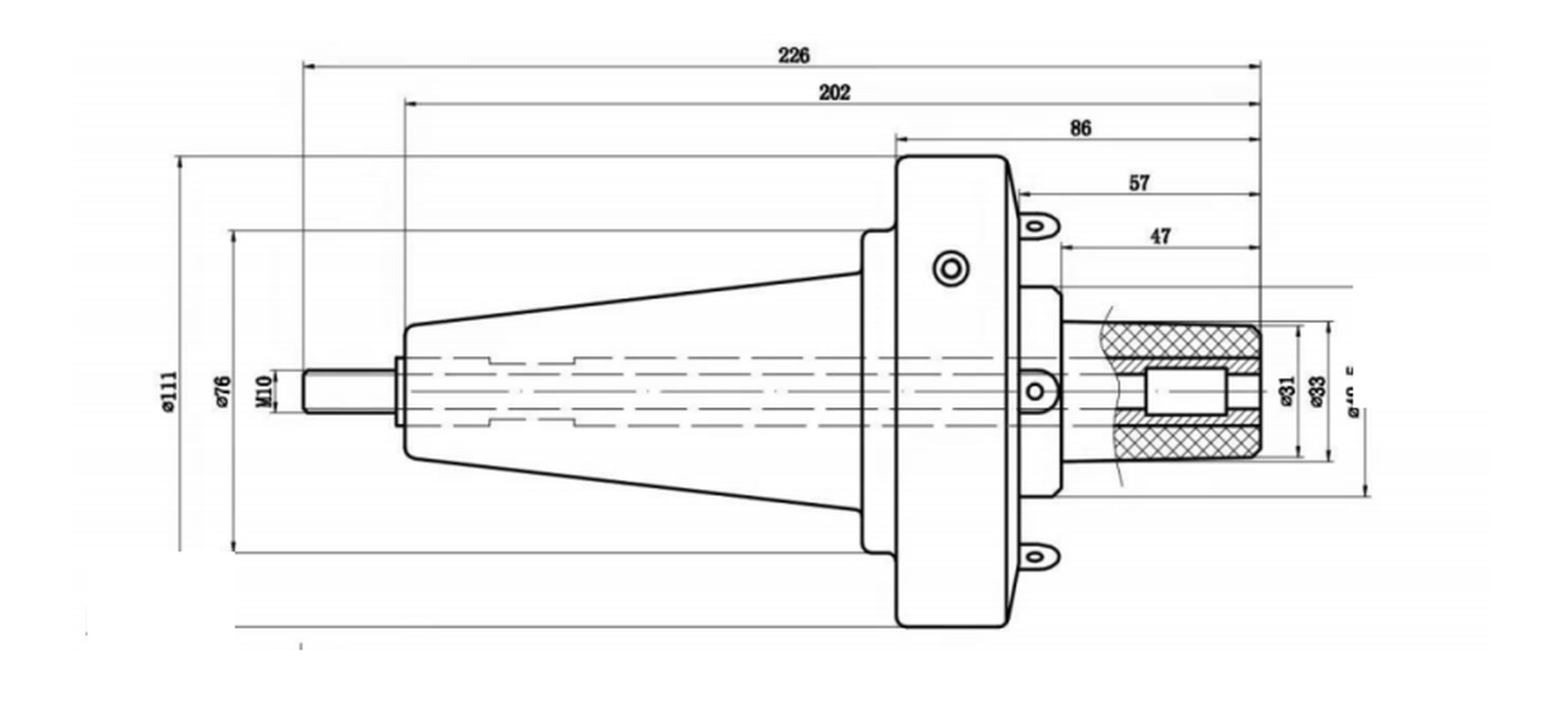

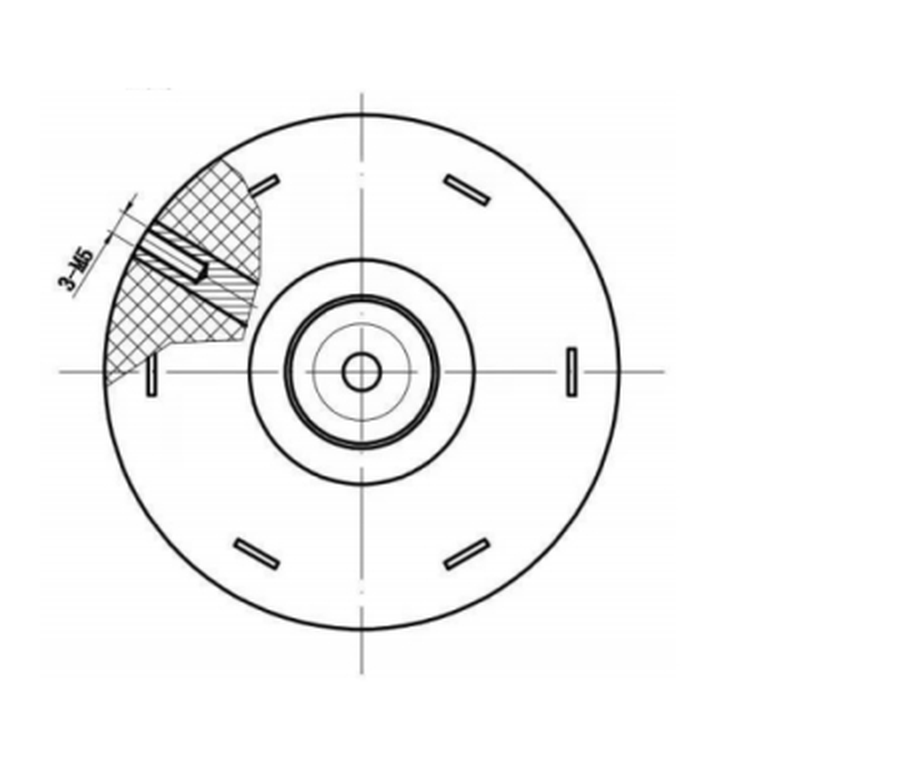

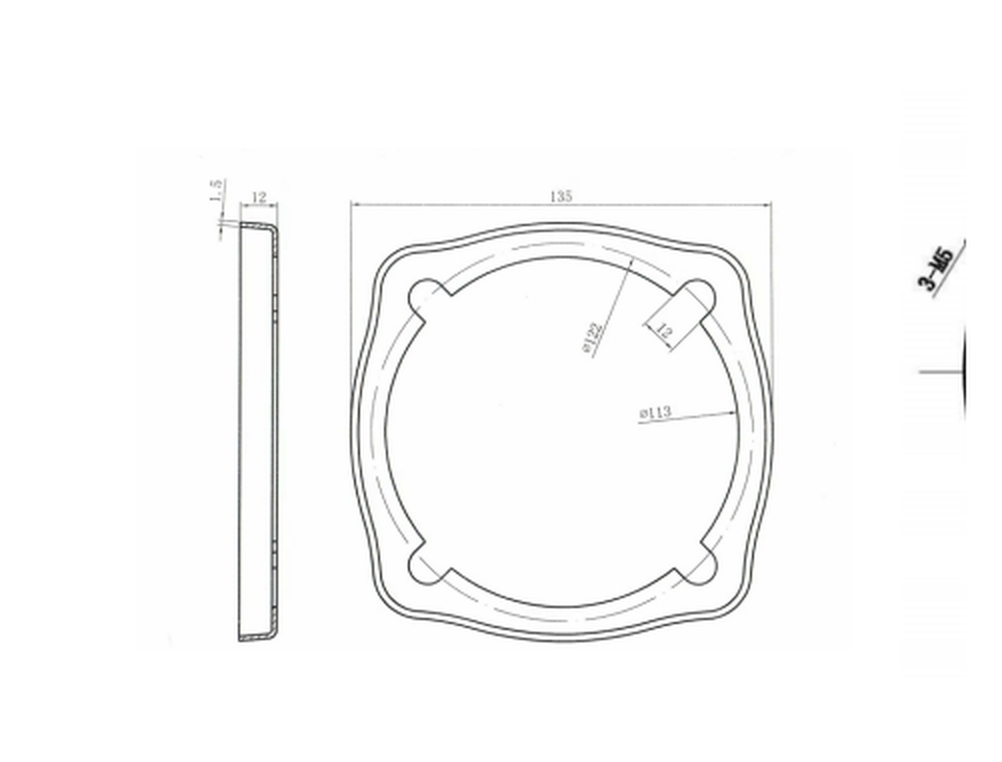

Use these product drawings to compare the configuration, then include the transformer interface and required dimensions with the inquiry.
On small screens, scroll the table horizontally.
| Selection parameter | Configuration value |
|---|---|
| Current rating | 250 A / 630 A |
| Product family | Distribution transformer epoxy resin plug-in bushing |
| Mounting, terminal and dimensions | Customizable |
Review the visible ratings and drawings below. Coordinate the mating connection, terminal or conductor, mounting face, sealing, clearances and required documents with the transformer interface.
Use these product drawings to compare the configuration, then include the transformer interface and required dimensions with the inquiry.
On small screens, scroll the table horizontally.

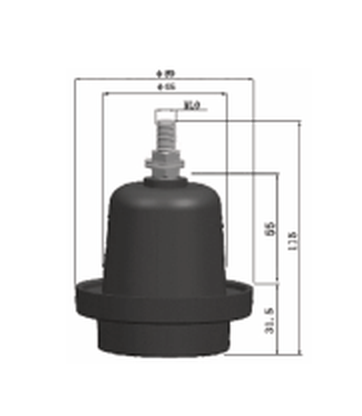

| Selection parameter | Configuration value |
|---|---|
| Rated voltage | 15/25 kV |
| Rated current | 200 A |
| Available voltage configurations | 15 kV and 25 kV |
| Interface, mounting and dimensions | Customizable |
Review the visible ratings and drawings below. Coordinate the mating connection, terminal or conductor, mounting face, sealing, clearances and required documents with the transformer interface.

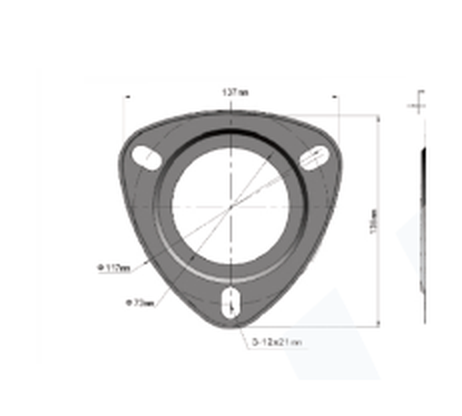

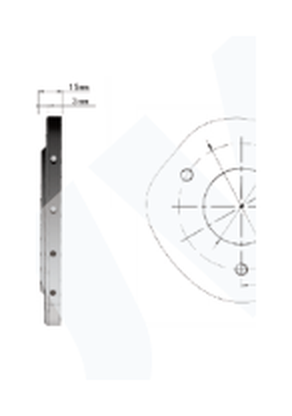

Use these product drawings to compare the configuration, then include the transformer interface and required dimensions with the inquiry.
On small screens, scroll the table horizontally.

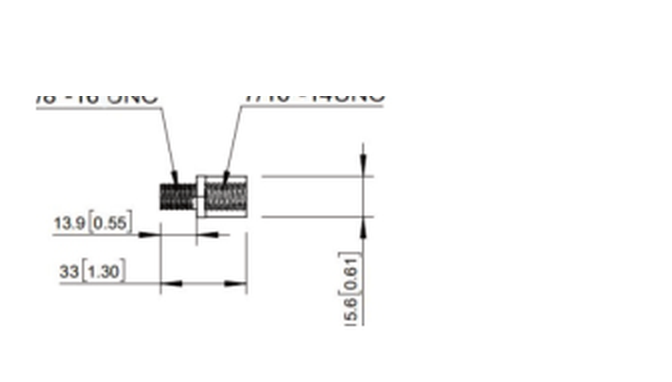

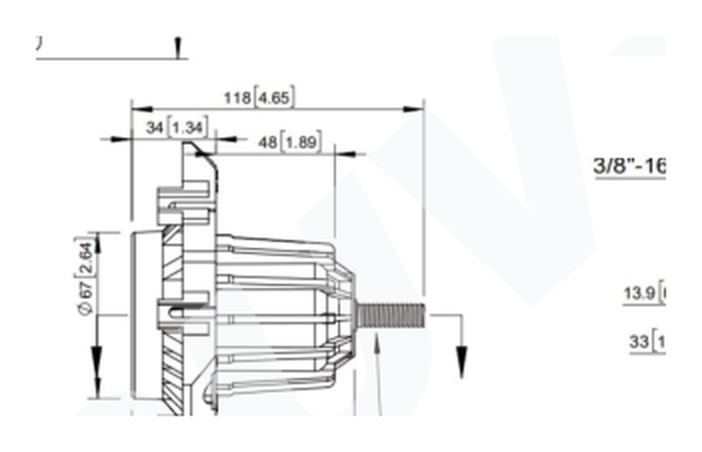

| Selection parameter | Configuration value |
|---|---|
| Rated voltage | 15/25/35 kV |
| Power-frequency withstand | 50 kV / 1 min |
| Continuous current | 200 A |
| BIL / minimum corona | 150 kV / 26 kV |
| Stud, mounting and dimensions | Customizable |
Review the visible ratings and drawings below. Coordinate the mating connection, terminal or conductor, mounting face, sealing, clearances and required documents with the transformer interface.

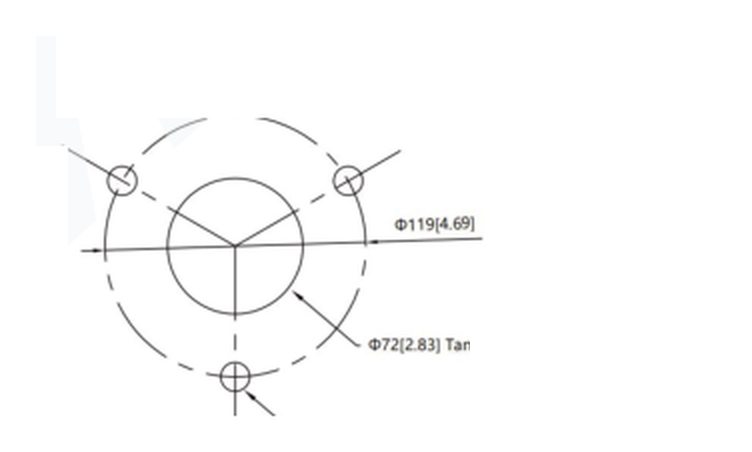

Use these product drawings to compare the configuration, then include the transformer interface and required dimensions with the inquiry.
On small screens, scroll the table horizontally.

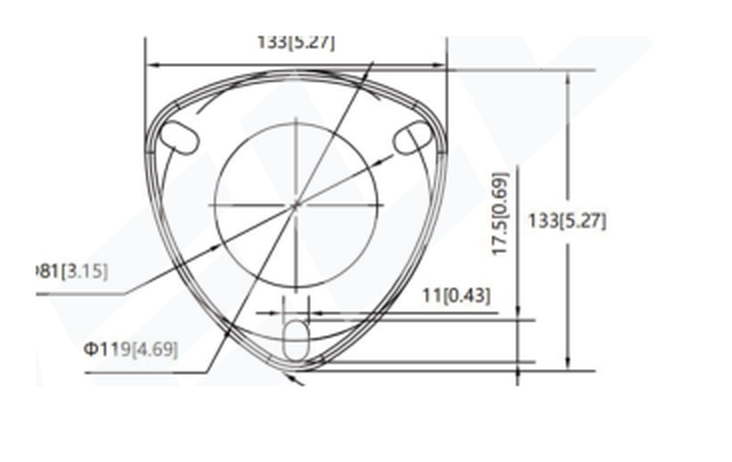

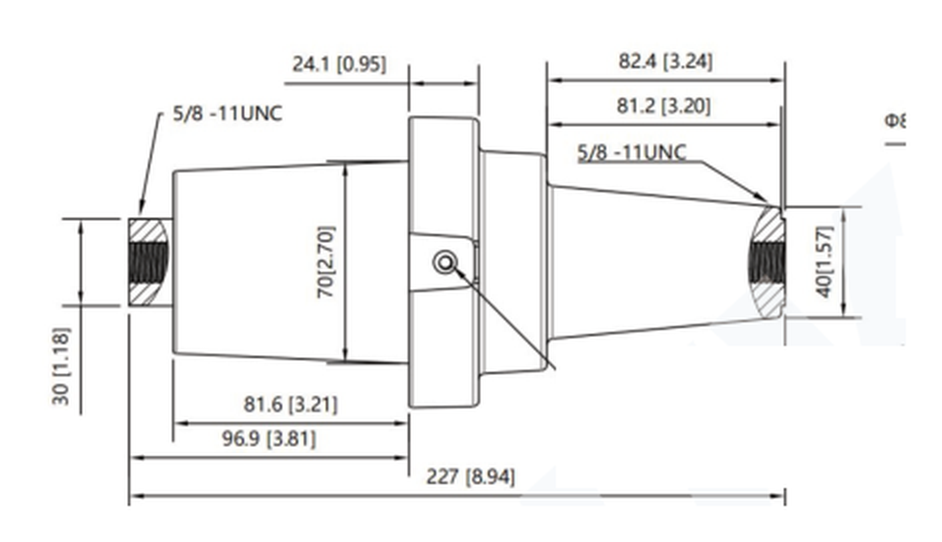

| Selection parameter | Configuration value |
|---|---|
| Rated voltage | 15/25/28 kV |
| Current and conductor configurations | 600 A aluminum / 900 A copper |
| Available voltage configurations | 15 kV, 25 kV and 28 kV |
| Terminal, mounting, dimensions and duty | Customizable |
Review the visible ratings and drawings below. Coordinate the mating connection, terminal or conductor, mounting face, sealing, clearances and required documents with the transformer interface.

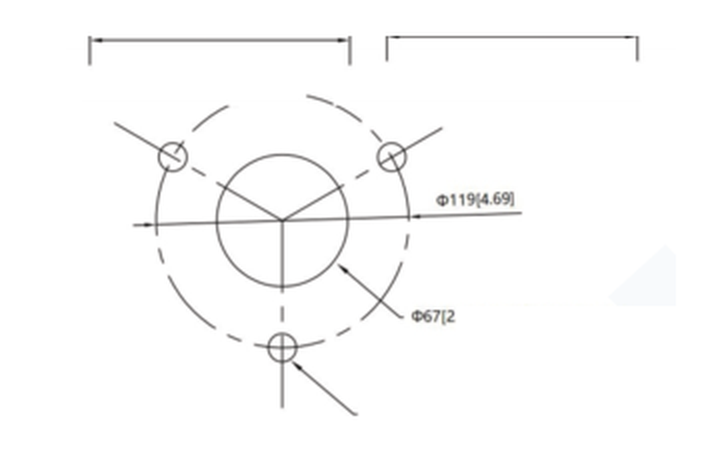

Use these product drawings to compare the configuration, then include the transformer interface and required dimensions with the inquiry.
On small screens, scroll the table horizontally.
| Selection parameter | Configuration value |
|---|---|
| Rated voltage | 35 kV |
| Current configurations | 600 A / 900 A |
| Product family | 35 kV deadbreak apparatus bushing |
| Terminal, mounting and dimensions | Customizable |
After choosing the bushing family, align voltage and current duty, mating connector, terminal or conductor, tank-wall mounting, sealing, clearances, inspection documents, packing and destination in one quotation scope.
State voltage class, continuous current, BIL or insulation requirements, connector or insert family, conductor or terminal material, orientation and loadbreak or deadbreak connection requirement.
Provide the tank-wall opening, clamp or flange, mounting face, gasket, clearance envelope, external connection orientation and internal lead route.
Include the transformer drawing, interface photos, applicable standard, inspection and document requirements, quantity, destination, packing and requested delivery timing.
Coordinate the selected bushing family, mating connector, interface geometry, conductor or terminal, marking and transformer integration requirements.
Define the required inspections, test records, traceability, nameplate details and document language for the order.
State quantity, destination, protective packing, logistics constraints, consignee details and requested delivery date.
A high voltage bushing order moves through six coordinated steps covering interface confirmation, materials, production, inspection, packing and dispatch.
Confirm bushing family, voltage and current duty, mating connection, mounting, sealing and drawings.
Align material, conductor or terminal, gasket, marking and any configuration-specific supply requirements.
Set quantity, configuration, manufacturing route, inspection points and required delivery window.
Manufacture or assemble the confirmed bushing configuration and transformer interface requirements.
Complete the specified inspections, identification, protective packing and shipping documentation.
Coordinate destination, logistics method, consignee details and planned dispatch timing.
Use these answers to compare connection families and prepare the electrical, mechanical and commercial inputs for a high voltage transformer bushing quotation.
Start with rated voltage and continuous current, then identify the separable connector or terminal family, insulation coordination, tank-wall mounting method, sealing interface and available clearance envelope. Use the product drawings to compare the final mechanical interface.
A bushing well receives a compatible insert and separable connector as part of the connection system. An apparatus bushing provides the equipment-side interface for the applicable deadbreak or other separable connection. Match the complete mating system, rating and mounting arrangement.
A tri-clamp bushing well is selected where the transformer tank-wall design uses a removable clamp and gasket interface. Confirm the opening, stud, clamp geometry, sealing face, required voltage class and mating connector before quotation.
Include rated voltage, continuous current, BIL or insulation requirements, mating connector or insert, conductor and terminal arrangement, tank-wall opening, clamp or flange, gasket, clearances, orientation and any available transformer drawing or interface photos.
Mounting, terminal, conductor, marking and dimensional alternatives can be reviewed for the selected bushing family. Provide the transformer interface, quantity, destination, inspection documents, packing needs and required delivery timing with the RFQ.
Send the selected family where known together with the transformer electrical duty and mechanical interface so SUVELL can review the configuration and quotation scope.
