A missing legacy part number shifts custom MV replacement work toward documented engineering qualification. This guide distinguishes design test evidence from application compatibility and explains how drawings, ratings, environmental data, interface comparisons, and an approved qualification record support a defensible replacement decision.
When an exact legacy part number cannot be matched, qualification of a custom medium voltage component depends on building a documented evidence package — dimensional and electrical data, interface compatibility records, and standards conformance — rather than on a catalog match alone. No cross-reference tool or photo comparison establishes suitability for an installed asset; that determination requires engineering review against the specific installation. The sections below explain what that review must cover and what evidence you need before issuing an RFQ or approving a replacement.
Legacy MV components — bushings, current transformers, insulators, surge arresters, and transformer accessories — were often manufactured to project-specific drawings or regional standards that have since been revised, consolidated, or withdrawn. The original manufacturer may have been acquired, renamed, or discontinued the line. In all of these cases, the part number becomes an administrative artifact; the asset's physical and electrical requirements do not change with it.
Qualification without a direct part number match is routine in transformer and switchgear maintenance. What changes is the evidentiary burden: instead of relying on a manufacturer's cross-reference, the engineer must independently verify that the candidate component satisfies every interface, rating, and environmental constraint the installed asset imposes. That verification is more demanding, but it is tractable given the right data.
The critical boundary to hold at the outset: dimensional similarity or visual resemblance establishes a starting point for investigation, not a conclusion about interchangeability. A bushing that looks identical to the original may have a different creepage distance, a different conductor bore, or a different voltage distribution profile under wet conditions. Each of those differences can be consequential and none is visible in a photograph.
Qualification has two distinct meanings in this context, and conflating them is a common source of errors.
The first meaning is type-qualification: evidence that the component design has been tested against a recognized standard — IEC, IEEE, or an equivalent national standard — and found capable of performing within stated ratings. For MV components, relevant IEC standards cover rated voltage, rated current, impulse withstand, power frequency withstand, temperature rise, and mechanical endurance, among others. A type-test report to a recognized standard is the strongest single piece of evidence for this layer of qualification.
The second meaning is application-qualification: evidence that this specific component is compatible with this specific installed asset in this specific configuration. A component can be fully type-qualified and still be unsuitable for a particular installation because of a non-standard interface, an unusual service environment, or a configuration dependency that the standard does not address.
IEC TR 62271-321:2026 provides a framework for product data exchange — nameplate data, catalogue data, and enquiry/tender/order information for high-voltage switchgear and controlgear components — that is directly relevant to the first layer. It defines what data a manufacturer should be able to supply and what data a buyer should request. Importantly, IEC TR 62271-321:2026 does not cover manufacturer-specific features and does not establish that a custom component is qualified for a particular installed asset. It is a data-exchange standard, not a compatibility-assurance mechanism. Using it correctly means treating its data fields as a checklist of what to ask for, not as a certification that the answers are acceptable.
Application-qualification remains an engineering judgment that must be made against the installation record.
Issuing an RFQ without a complete data package produces quotes that cannot be technically evaluated and creates contractual ambiguity about what was actually ordered. The data collection phase is not administrative overhead; it is the technical foundation of the entire qualification.
**From the installed asset's records:**
– Original equipment nameplate data and any revision history
– Rated voltage, rated current, BIL, and power frequency withstand for the relevant interface
– Interface dimensions: flange pattern, mounting hole pattern, conductor bore, center-to-center spacing, overall envelope with tolerances
– Creepage and clearance requirements for the service environment
– Thermal class of insulation and any operating temperature limits
– Any project-specific deviations from the governing standard noted at original supply
**From the service environment:**
– Pollution level and applicable site class under IEC 60815 or equivalent
– Altitude correction if the site is above 1000 m
– Seismic zone if mechanical shock requirements apply
– Any fluid compatibility requirements (oil type, silicon content, gas if applicable)
**From the candidate component supplier:**
– Type test reports with the applicable standard identified and the test laboratory named
– Dimensional drawing with tolerances, not a nominal catalog drawing
– Material data for electrical insulation and any fluid-wetted surfaces
– Declared ratings for all parameters listed in the asset records
– Any known application restrictions
Gaps in either side of this data set are engineering risks, not paperwork gaps. A missing tolerance on a critical dimension, for example, can result in an assembly that is geometrically correct in the catalog but fails to seal under operating pressure in the field.
Dimensional and rating search tools — such as those provided by Hitachi Energy for bushing identification — are a legitimate and useful starting point for identifying candidate components when a part number is unavailable. Hitachi Energy's tools support searches by approximate dimensions and ratings, and include a product-specific cross-reference function. These routes are appropriate for narrowing the field of candidates and for initiating a technical conversation with a manufacturer's application engineering team.
The important scope limitation: search results from these tools support identification and discussion; they do not establish suitability or interchangeability for an installed asset. A search result is a candidate list, not a qualified replacement list. The distinction matters because the gap between "this product exists and has compatible approximate dimensions" and "this product is qualified for my installation" is exactly the engineering work described in the rest of this article.
Practical use of these tools in a qualification workflow looks like this: run the dimensional and rating search to identify one to three plausible candidates, request full dimensional drawings and type test reports for each, then evaluate those documents against the installed asset's records. The tool narrows the search; the documents support the qualification decision.
When a search returns no result, or when the returned candidates differ from the original in a dimension or rating that cannot be accommodated, the appropriate path is to engage a manufacturer's application engineering team with the full data package assembled above. Many custom MV components can be manufactured to specification; the absence of a catalog match does not mean the component is unavailable.
Interface compatibility is the most frequent source of qualification failures for custom components, and it requires more detailed scrutiny than a rating comparison. Two components can share identical voltage and current ratings while being mechanically or electrically incompatible at the interface.

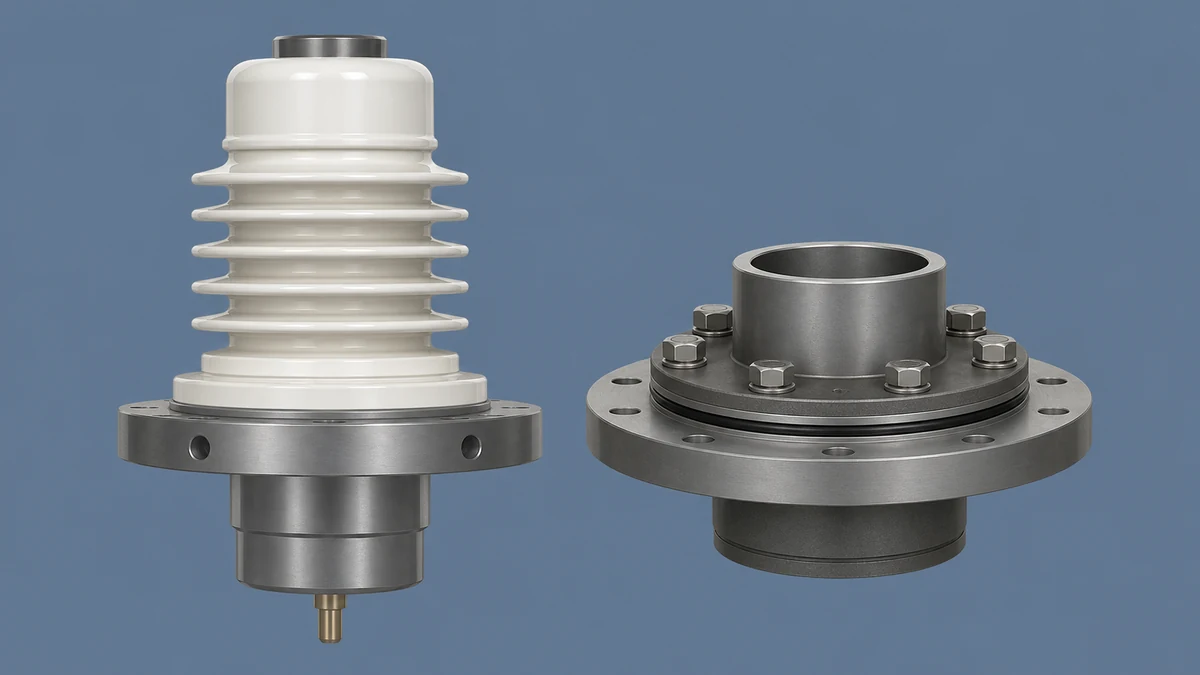

For bushings, the critical interface parameters include the flange geometry, the conductor connection (bore diameter, thread pattern, contact area), the oil-side extension geometry if the bushing enters a transformer tank, and the creepage distance relative to the site pollution class. A bushing with the correct voltage rating but insufficient creepage for the site's pollution category is not a qualified replacement regardless of its electrical test pedigree.
For current transformers and other metering components, interface dependencies extend to the secondary burden and accuracy class, which affect the measuring instrument's calibration. A physically compatible CT with a different accuracy class or a different secondary burden rating will produce metering errors that may not be immediately apparent but will accumulate over time.

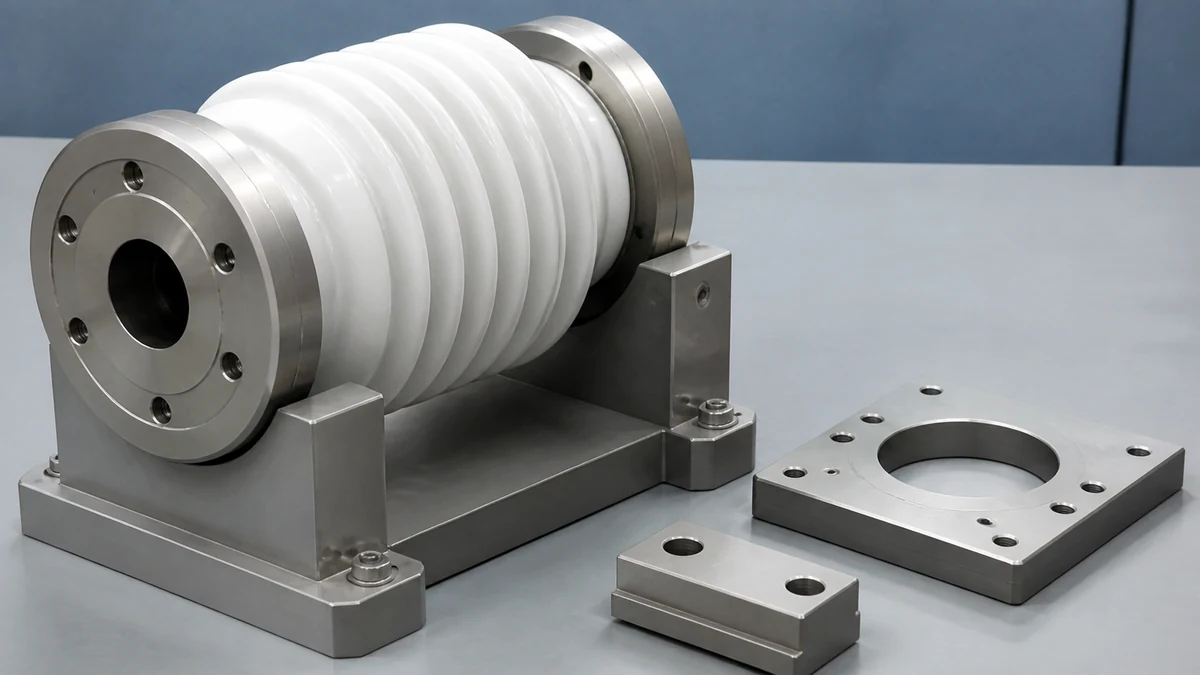

For insulators and support structures, the mechanical load path is an interface dependency that is frequently overlooked. Cantilever load ratings, moment capacity, and connection geometry must all be verified against the original design loading, not just against the insulator's nominal voltage class.
The review question to ask for each interface parameter: is the difference between the original and the candidate within the tolerance the asset can accommodate, and is that tolerance documented? Undocumented tolerance assumptions are engineering risk, not engineering judgment.
The standards landscape for MV components is layered, and understanding what each layer does and does not assure is essential to evaluating a supplier's evidence package.
IEC product standards (the IEC 60137 series for bushings, IEC 61869 for instrument transformers, and the IEC 60099 series for surge arresters, as representative examples) define type test sequences, rating definitions, and marking requirements. A type test report to a current version of the applicable standard, issued by an accredited test laboratory, is strong evidence of design performance within the stated ratings. It does not assure performance outside those ratings, nor does it address installation-specific factors.
IEC TR 62271-321:2026, as discussed above, provides a structured vocabulary for the data that should accompany a component through its lifecycle. Requiring a supplier to provide data in conformance with this technical report's fields is a legitimate procurement requirement that improves the completeness and comparability of bids. It does not substitute for type testing, and it does not create a qualified-replacement determination on its own.
National or regional standards — ANSI/IEEE in North America, EN harmonized standards in Europe — may impose additional requirements or differ in test severity from IEC standards. When the installed asset was originally specified to a national standard, the replacement qualification should address that standard's requirements, not only IEC equivalents. If the candidate component is tested to IEC only, the responsible engineer must assess whether the IEC test conditions bound the national standard's requirements or whether gaps exist.
Manufacturer declarations of conformity without supporting type test reports are a weaker form of evidence. They are not disqualifying on their own for lower-risk components, but for primary insulation components at rated MV levels, independent type test evidence from an accredited laboratory is the appropriate minimum.
The qualification record is the document that authorizes the custom component for installation. Its purpose is to demonstrate, in traceable form, that each engineering requirement of the installed asset is met by the candidate component, and to record who made that determination and on what basis.
A complete qualification record for a custom MV component typically includes:
The qualification record does not need to be lengthy, but it does need to be complete and traceable. An entry that says "dimensions checked — OK" is not traceable. An entry that references the dimensional drawing revision, the installation record page number, and the specific parameter being compared is traceable.
For assets under utility ownership or covered by a regulatory maintenance program, the qualification record may need to meet additional documentation requirements established by the asset owner or the regulator. Verify those requirements before beginning the qualification process, because they can affect the evidence threshold and the sign-off authority.
Once a component is qualified through the process above, installation, inspection, and commissioning are governed by the asset owner's approved procedures and the component manufacturer's installation instructions. These steps involve specific torque values, dielectric fluid handling, HV testing sequences, and protection relay coordination checks that must be performed according to those model-specific approved documents.
The engineering and procurement team's role at this boundary is to ensure the qualified component arrives with the necessary installation documentation, that the installation team has access to the manufacturer's instructions, and that any conditional approvals or monitoring requirements from the qualification record are communicated to the installing team.
Where a discrepancy is found during installation — a dimension that does not match the drawing, a fitment problem, or a marking inconsistency — the correct action is to stop, document the discrepancy, and return to the qualification process before proceeding. Field adaptation of MV components outside an approved change process is a commissioning risk and typically a compliance issue.
At minimum: a complete dimensional drawing with tolerances, declared ratings for all parameters the installation requires, and type test reports to the applicable IEC or national standard issued by an accredited test laboratory. IEC TR 62271-321:2026 identifies the data fields that should be covered. For primary insulation components, independent type test evidence is the appropriate floor; manufacturer declarations alone are insufficient for high-voltage-interface components.
A cross-reference tool — such as Hitachi Energy's dimensional and rating search — narrows the field of candidate components and initiates a technical conversation with the manufacturer's application engineering team. It does not establish suitability or interchangeability for an installed asset. The output is a candidate list; the qualification determination requires a full dimensional and ratings comparison against the specific installation record.
Type-qualification is evidence that the component design has been tested and meets a recognized standard's performance requirements within stated ratings. Application-qualification is the additional determination that the component is compatible with the specific installed asset — its interface geometry, service environment, loading conditions, and any project-specific deviations from the governing standard. Both are required; a component can pass type tests and still be unsuitable for a particular installation.
IEC TR 62271-321:2026 defines a structured set of product data fields for high-voltage switchgear and controlgear components across the nameplate and enquiry/tender/order lifecycle phases. Requiring a supplier to provide data that covers those fields improves bid completeness and comparability. The standard does not cover manufacturer-specific features and does not establish that a component is qualified for a particular installed asset — that determination remains an engineering judgment against the installation record.
The absence of a catalog match means no standard product currently meets the search parameters, not that a suitable component cannot be obtained. The appropriate next step is to engage a manufacturer's application engineering team with the complete data package — dimensional requirements, interface geometry, ratings, environmental conditions, and applicable standard. Many MV components can be manufactured to specification, and a custom-manufactured component qualified through the evidence process described above is a valid replacement path.
